SPECIFICATIONS
|
|

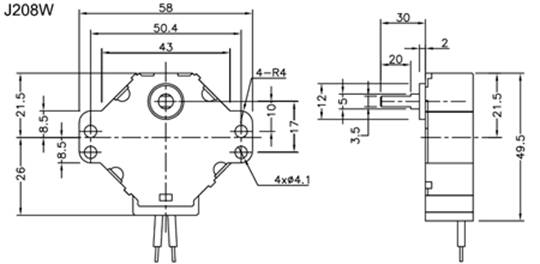

MODEL:J208(8
POLE)
|
|
|
|
VOLTAGE
|
VAC
|
12,24,100,115,200,220,240
|
|
POWER
FRNQUENCY
|
Hz
|
50/60
|
|
POWER INPUT
|
W
|
3.0
|
|
NO-LOAD
CURRENT
|
mA
|
30/27(110VAC)
|
|
RATED
SPEED(ROTOR)
|
r. p. m.
|
750/900
|
|
ROTATION
DIRECTION
|
CW,CCW
|
CW,CCW, Bi-direction
|
|
START TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
14 (1 r. p .m)
|
|
STALL TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
15(1 r. p. m)
|
|
TEMPERATURE
RISE
|
Deg.
|
55 ℃
|
|
AMBIENT
OPERATING TEMPERATURE
|
Deg.
|
-10~ + 50 ℃
|
|
INSULATION
DIELECTRIC STRENGTH
|
|
AC 1,500V- -1 min
|
|
WEIGHT
|
g
|
70
|
|
CAPACITOR
|
μF
|
---------
|
|
PLASTIC GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABLE
|
|
50Hz
|
4.2
|
2.5
|
2.25
|
|
|
|
|
|
60Hz
|
5
|
3
|
2.7
|
|
|
|
|
|
TORQUE
|
2.5
|
3
|
3
|
|
|
|
|
FEATURE
LOW COST, PRECISION, COMPACT SIZE, HIGH
TORQUE, LOW NOISE
APPLICATION
AIR CONDITIONER, ELECTRIC FAN, MICROWAVE
OVEN, LAMINATOR, SPOTLIGHT…etc.
|
