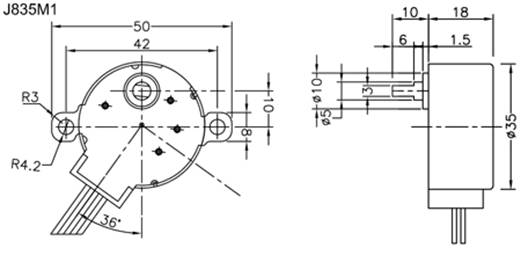

.files/image002.jpg)
|
|
ITEM
|
|
J835M1-130
|
J835M1-45
|
|
DRIVE VOLTAGE±10%
|
V DC
|
12
|
5
|
|
CURRENT PER PHASE
|
mA
|
100
|
110
|
|
RESISTANCE PER WINDING
|
Ω
|
130
|
45
|
|
No.of PHASE
|
—
|
4
|
4
|
|
EXCITATION MODE
|
|
Uni-polar Drive
|
|
POLE
|
POLE
|
12
|
12
|
|
STEP ANGLE
|
DEG
|
7.5˙
|
7.5˙/85
|
|
HOLDING TORQUE
|
g.cm
|
2000max
|
2000max
|
|
DETENT TORQUE
|
g.cm
|
800
|
800
|
|
PULL-OUT TORQUE/100PPS
|
g.cm
|
1200
|
900
|
|
MAX.STARTING FREQUENCY
|
pps
|
500
|
500
|
|
MAX.RESPONSE FRENQUENCY
|
pps
|
1000
|
1000
|
|
12V 100pps
TEMPERATURE RISE
|
deg
|
50˙C
|
50˙C
|
|
INSULATION RESISTANCE
|
MΩ
|
10M Ohm(DC 500V)
|
|
DIELECTRIC STRENGTH
|
—
|
500VAC FOR ONE MINUTE
|
|
AMBIENT TEMPERATURE
|
deg
|
-5 ~ +50 ˙C
|
|
WEIGHT
|
gf
|
50g
|
50g
|
|
APLLICATION: *Air conditioners-Flaps, Play
machine, Valve, Moniting Camera…etc.
|
|
ITEM
|
|
J824M1-70
|
J824M1-250
|
|
DRIVE VOLTAGE±10%
|
V DC
|
5
|
12
|
|
CURRENT PER PHASE
|
mA
|
75
|
50
|
|
RESISTANCE PER WINDING
|
Ω
|
70
|
250
|
|
No.of PHASE
|
—
|
4
|
4
|
|
EXCITATION MODE
|
|
|
|
POLE
|
POLE
|
16
|
16
|
|
STEP ANGLE
|
DEG
|
5.625˙/64
|
5.625˙/64
|
|
HOLDING TORQUE
|
g.cm
|
2000max
|
2000max
|
|
DETENT TORQUE
|
g.cm
|
300
|
300
|
|
PULL-OUT TORQUE/100PPS
|
g.cm
|
450
|
450
|
|
MAX.STARTING FREQUENCY
|
pps
|
700
|
700
|
|
MAX.RESPONSE FRENQUENCY
|
pps
|
1200
|
1200
|
|
12V 100pps
TEMPERATURE RISE
|
deg
|
40˙C
|
40˙C
|
|
INSULATION RESISTANCE
|
MΩ
|
|
|
DIELECTRIC STRENGTH
|
—
|
|
|
AMBIENT TEMPERATURE
|
deg
|
|
|
WEIGHT
|
gf
|
35g
|
35g
|
|
APLLICATION: *Air conditioners-Flaps, Play
machine, Valve, Moniting Camera…etc.
|
|
|
|
| |
|
|
 |
