SPECIFICATIONS
|
|
MODEL
|
|

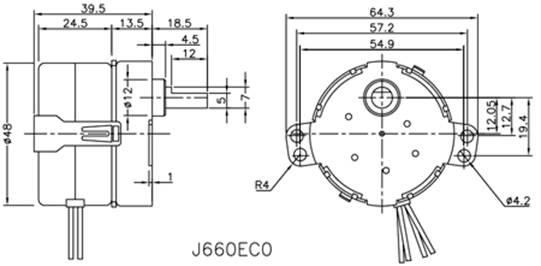

J660EGO
|
|
VOLTAGE
|
VAC
|
12,24,100,115,200,220,240
|
|
POWER
FRNQUENCY
|
Hz
|
50/60
|
|
POWER INPUT
|
W
|
3.5
|
|
NO-LOAD
CURRENT
|
mA
|
40 (110VAC)
|
|
RATED
SPEED(ROTOR)
|
r. p. m.
|
500/600
|
|
ROTATION
DIRECTION
|
CW,CCW
|
REVERSIBLE
|
|
START TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
30(1 r. p .m)
|
|
STALL TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
35(1 r. p. m)
|
|
TEMPERATURE
RISE
|
Deg.
|
55 ℃
|
|
AMBIENT
OPERATING TEMPERATURE
|
Deg.
|
-10~ + 50 ℃
|
|
INSULATION
DIELECTRIC STRENGTH
|
|
AC 1,500V- -1 min
|
|
WEIGHT
|
g
|
260
|
|
CAPACITOR
|
μF
|
4.7(24v),0.33(110v), 0.082(220v)
|
|
EG0 GEAR BOX METAL
GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABEL
|
|
REDUCTION RATIO
|
1/900
|
1/450
|
1/350
|
1/302
|
1/281
|
1/240
|
1/168
|
|
OUTPUT SPEED @60Hz
|
0.67
|
1.33
|
1.71
|
2.0
|
2.14
|
2.5
|
3.57
|
|
TORQUE
|
30
|
20
|
20
|
15
|
15
|
14
|
10
|
APPLICATION
AIR CONDITIONER, ELECTRIC FAN, MICROWAVE
OVEN, LAMINATOR, SPOTLIGHT…etc.
|
