SPECIFICATIONS
|
|
MODEL:J660EG12POLE)
|
|

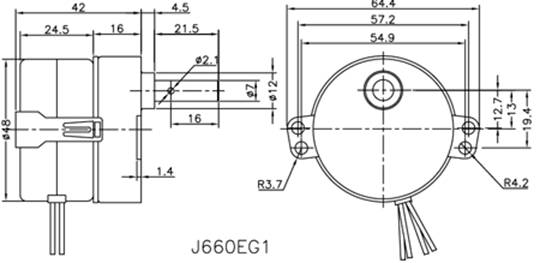

J660EG1
|
|
VOLTAGE
|
VAC
|
12,24,100,115,200,220,240
|
|
POWER
FRNQUENCY
|
Hz
|
50/60
|
|
POWER INPUT
|
W
|
3.5
|
|
NO-LOAD
CURRENT
|
mA
|
40 (110VAC)
|
|
RATED
SPEED(ROTOR)
|
r. p. m.
|
500/600
|
|
ROTATION
DIRECTION
|
CW,CCW
|
REVERSIBLE
|
|
START TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
30(1 r. p .m)
|
|
STALL TORQUE
(THEORETICAL
OUTPUT)
|
kg-cm
|
35(1 r. p. m)
|
|
TEMPERATURE
RISE
|
Deg.
|
55 ℃
|
|
AMBIENT
OPERATING TEMPERATURE
|
Deg.
|
-10~ + 50 ℃
|
|
INSULATION
DIELECTRIC STRENGTH
|
|
AC 1,500V- -1 min
|
|
WEIGHT
|
g
|
280
|
|
CAPACITOR
|
μF
|
4.7(24v),0.33(110v), 0.082(220v)
|
|
EG1
GEAR BOX METAL GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABEL
|
|
REDUCTION RATIO
|
1/100
|
1/120
|
1/133
|
1/160
|
1/180
|
|
OUTPUT SPEED @60Hz
|
6
|
5
|
4.51
|
3.75
|
3.33
|
|
TORQUE
|
6
|
6
|
7
|
9
|
9
|
|
EG1
GEAR BOX METAL GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABEL
|
|
REDUCTION RATIO
|
1/240
|
1/360
|
1/480
|
1/720
|
1/960
|
|
OUTPUT SPEED @60Hz
|
2.5
|
1.66
|
1.25
|
0.833
|
0.625
|
|
TORQUE
|
14
|
16
|
18
|
20
|
20
|
APPLICATION
AIR CONDITIONER, ELECTRIC FAN, MICROWAVE
OVEN, LAMINATOR, SPOTLIGHT…etc.
|
