J860J860 |
|
|
|
|
|
|
|
 |
ITEM
|

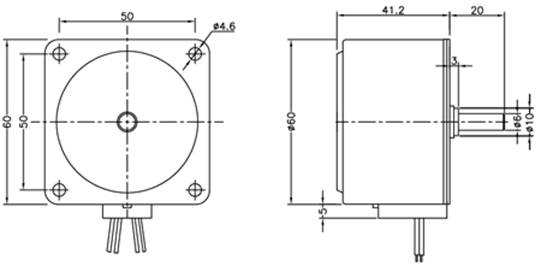

.files/image002.jpg)
|
|
SPECIFICATIONS
|
|
ITEM
|
|
|
|
DRIVE VOLTAGE ±10%
|
V DC
|
12
|
|
CURRENT PER
PHASE
|
mA
|
600
|
|
RESISTANCE PER
WINDING
|
Ω
|
20
|
|
No. of PHASE
|
－
|
4
|
|
EXCITATION
MODE
|
|
Uni-polar Drive
|
|
POLE
|
POLE
|
24
|
|
STEP ANGLE
|
DEG
|
7.5°
|
|
HOLDING TORQUE
|
g.cm
|
2400
|
|
DETENT TORQUE
|
g.cm
|
400
|
|
PULL-OUT
TORQUE/100PPS
|
g.cm
|
800
|
|
MAX.STARTING
FREQUENCY
|
pps
|
230
|
|
MAX.RESPONSE
FRENQUENCY
|
pps
|
250
|
|
12V 100pps
TEMPERATURE RISE
|
deg
|
70 °C
|
|
INSULATION
RESISTANCE
|
MΩ
|
10M Ohm (DC 500V)
|
|
DIELECTRIC
STRENGTH
|
－
|
500VAC FOR ONE MINUTE
|
|
AMBIENT
TEMPERATURE
|
deg
|
-5 ~ +50 °C
|
|
WEIGTH
|
gf
|
425
|
|
|
|
|
| |
|
|
 |
