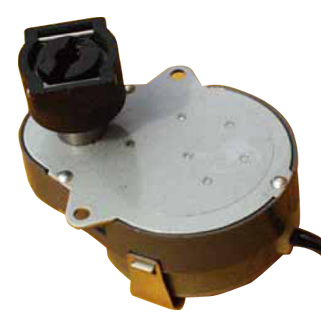

J206 Ch
|
SPECIFICATIONS
|
|
規格(極數)
|
|
|
|
電壓
|
VAC
|
12,24,100,115,200,220,240
|
|
電源頻率
|
Hz
|
50/60
|
|
功率
|
W
|
3.5
|
|
無負荷電流
|
mA
|
40/35(110VAC)
|
|
轉子轉速
|
r. p. m.
|
750/900
|
|
迴轉方向
|
CW,CCW
|
CW,CCW, Bi-direction
|
|
啟動轉矩
|
kg-cm
|
39 (1 r. p .m)
|
|
制動轉矩
|
kg-cm
|
51(1 r. p. m)
|
|
溫升
|
Deg.
|
55 ℃
|
|
使用環境溫度
|
Deg.
|
-10~ + 50 ℃
|
|
絕緣耐壓
|
|
AC 1,500V- -1 min
|
|
重量
|
g
|
125
|
|
電容
|
μF
|
---------
|
|
PLASTIC GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABLE
|
|
50Hz
|
0.833
|
1.25
|
2.1
|
2.5
|
4
|
5
|
6
|
6.66
|
7.5
|
8.33
|
|
60Hz
|
1
|
1.5
|
2.5
|
3
|
4.8
|
6
|
7.2
|
8
|
9
|
10
|
|
TORQUE
|
8
|
8
|
8
|
8
|
8
|
7
|
6
|
5
|
4
|
3.5
|
|
50Hz
|
10
|
12.8
|
16.7
|
20
|
30
|
33.33
|
50
|
60
|
100
|
|
|
60Hz
|
12
|
15.3
|
20
|
24
|
36
|
40
|
60
|
72
|
120
|
|
|
TORQUE
|
3
|
2.5
|
2
|
1.5
|
1
|
0.8
|
0.6
|
0.5
|
0.3
|
|
|
METAL GEAR TRAIN OUTPUT SPEED(rpm)& TORQUE(kg-cm)
TABLE
|
|
50Hz
|
0.83
|
1.67
|
2.14
|
2.48
|
2.67
|
3.125
|
4.46
|
|
|
|
|
60Hz
|
1
|
2
|
2.57
|
2.97
|
3.2
|
3.75
|
5.35
|
|
|
|
|
TORQUE
|
25
|
15
|
12
|
11
|
10
|
9
|
7
|
|
|
|
|
FEATURE
LOW COST, PRECISION, COMPACT SIZE,
HIGH TORQUE, LOW NOISE
APPLICATION
AIR CONDITIONER, ELECTRIC FAN,
MICROWAVE OVEN, LAMINATOR, SPOTLIGHT…etc.
|
|
|
|
|
