SPECIFICATIONS
|
|
規格(極數)
|
|

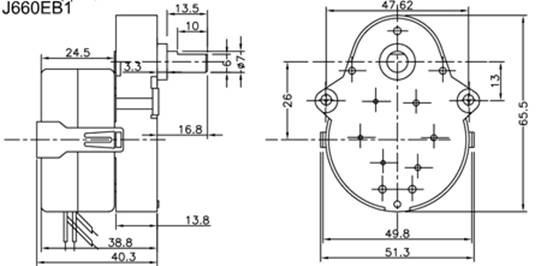

J660EB1
|
|
電壓
|
VAC
|
12,24,100,115,200,220,240
|
|
電源頻率
|
Hz
|
50/60
|
|
功率
|
W
|
3.5
|
|
無負荷電流
|
mA
|
40 (110VAC)
|
|
轉子轉速
|
r. p. m.
|
500/600
|
|
迴轉方向
|
CW,CCW
|
REVERSIBLE
|
|
啟動轉矩
|
kg-cm
|
30(1 r. p .m)
|
|
制動轉矩
|
kg-cm
|
35(1 r. p. m)
|
|
溫升
|
Deg.
|
55 ℃
|
|
使用環境溫度
|
Deg.
|
-10~ + 50 ℃
|
|
絕緣耐壓
|
|
AC 1,500V- -1 min
|
|
重量
|
g
|
280
|
|
電容
|
μF
|
4.7(24v),0.33(110v), 0.082(220v)
|
|
EB0
GEAR BOX METAL GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABEL
|
|
50Hz
|
1/450
|
1/350
|
1/240
|
1/187.5
|
|
|
|
OUTPUT SPEED @60Hz
|
1.33
|
1.71
|
2.5
|
3.2
|
|
|
|
TORQUE
|
20
|
20
|
14
|
10
|
|
|
|
EB0
GEAR BOX METAL GEAR TRAIN OUTPUT SPEED(rpm) & TORQUE(kg-cm) TABEL
|
|
50Hz
|
1/40
|
1/48.7
|
1/62.5
|
1/75
|
1/90
|
1/53.3
|
|
OUTPUT SPEED @60Hz
|
15
|
12.3
|
9.6
|
8
|
6.66
|
11.25
|
|
TORQUE
|
2
|
3
|
3.5
|
4
|
5
|
3
|
APPLICATION
AIR CONDITIONER, ELECTRIC FAN, MICROWAVE
OVEN, LAMINATOR, SPOTLIGHT…etc.
|
